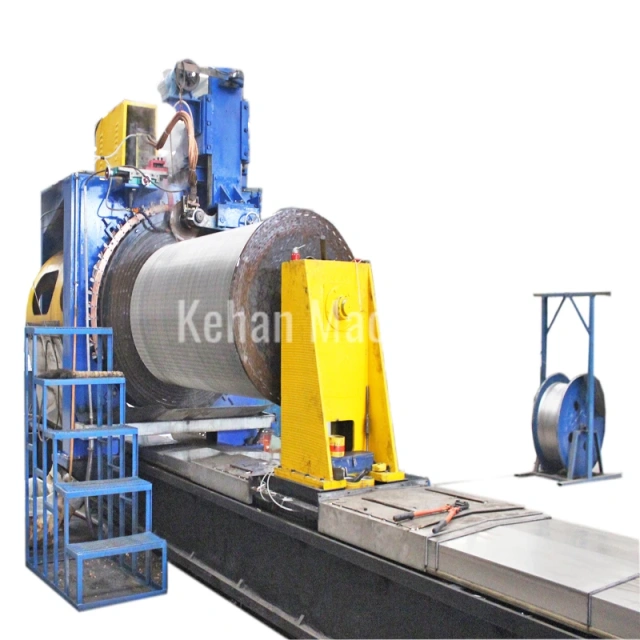

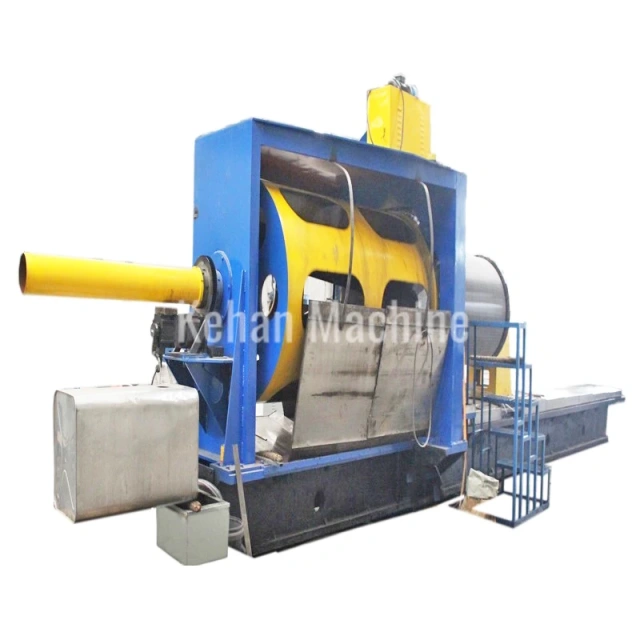

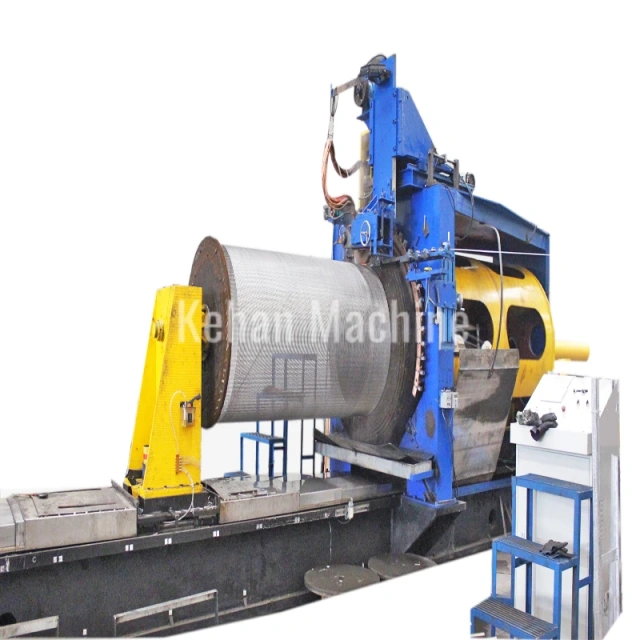

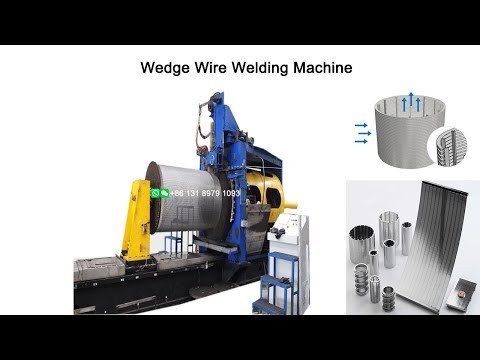

Wedge Wire Welding Machine is also named Johnson Tube Welding Machine, Johnson Pipe Welding Machine, Mining Screen Mesh Welding Machine. Water Well Tube Welding Machine can make Wedge Wire Pipe for Water Conservancy Projects or Oil filtration. Filtering Screen Welding Machine generally make wedge wire screen for Mine sieve, coal washing, water drainage, etc.
Technical Parameter:
|
Model |
LG-160 |
LG-200 |
LG-600 |
LG -800 |
LG-1200 |
|
Pipe diameter（mm） |
20-160 |
25-200 |
200-600 |
300-800 |
400-1200 |
|
Pipe length（mm） |
2000 |
2500 |
3000 |
3000 |
4400 |
|
Welding speed |
0-60 |
0-60 |
0-25 |
0-15 |
0-8 |
|
Slot（mm） |
±0.015 |
±0.015 |
±0.02 |
±0.02 |
±0.03 |
|
Main shaft |
Servo motor control |
||||
|
Pulling synchronism |
Servo motor control |
||||
|
Screw pulling |
Motor control |
||||
|
Cooling method |
Chiller |
Chiller +Outer recycling water cooling |
|||
|
Dimension（m） |
6*1.5*2.5 |
7*1.5*2.5 |
8*2*2.7 |
9*2*2.8 |
11*2.2*3.5 |
|
Weight（Ton） |
4 |
4.5 |
6.5 |
7 |
16 |
Wedge Wire Welding Machine Functions:
Wedge Wire Welding Machine adopts two-axis CNC control, servo motor drive, and high welding precision. Wedge Wire Screen Welder uses CNC programming technology to control the equipment to work stably. Johnson Tube Machine can be preset working parameters through the human-machine interaction interface, and the machine will work automatically. In addition, Johnson Pipe Machine has an automatic alarm function. It will promptly remind workers to proceed to the next section after the working parameters are completed.
Welded Wedge Wire Screen Production Line:
Wedge wire rolling apparatus can produce wedge wire in roll form.
Wedge wire straightening and cutting equipment to straighten wedge wire and cut off for required length.
Wedge wire screen welding machine makes welded wedge wire screen pipe.
Water Well Pipe Machine Features:
Complete automation from raw material to finished product.
Touch screen and PLC regulation, easy to operate.
Change dies for different wire size and parameter.
Welding length is adjustable for different product.
Servo motor for accurate welding.
Water cooling to prevent welding deformation due to high temperature.
Wire stand can hold a maximum of 1-2 tons of wire, continuous working.
Wedge Wire Mesh Application:

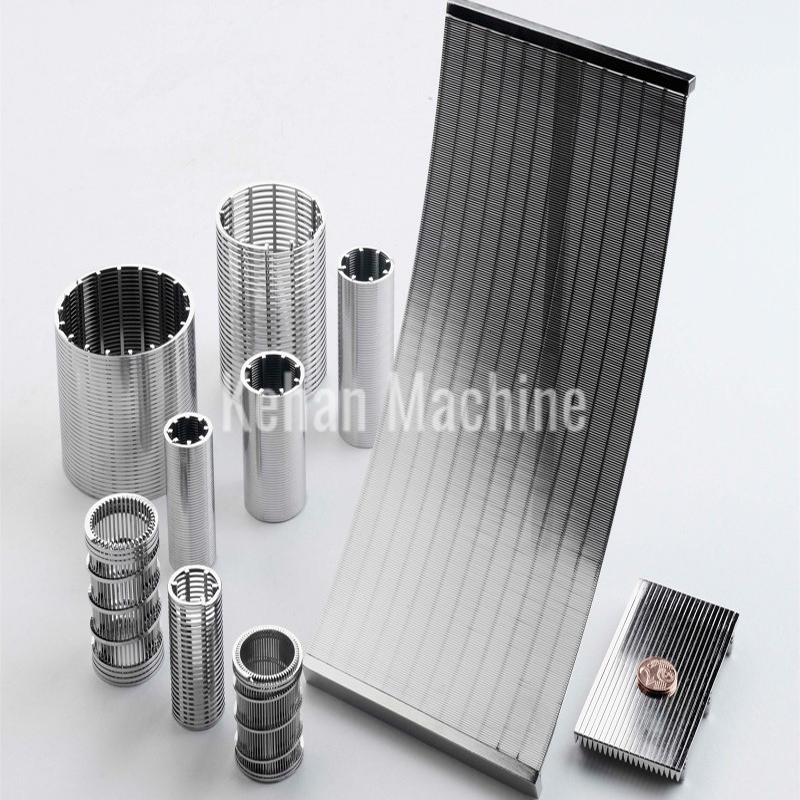

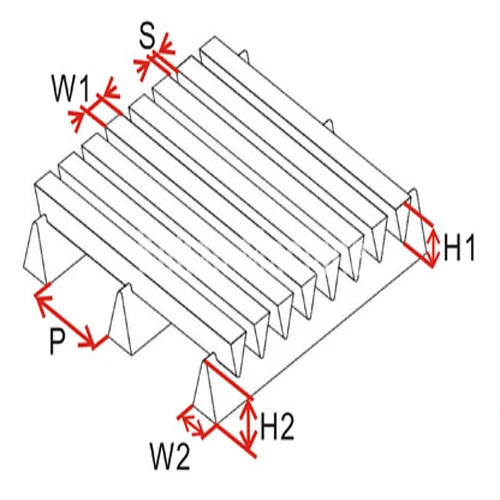

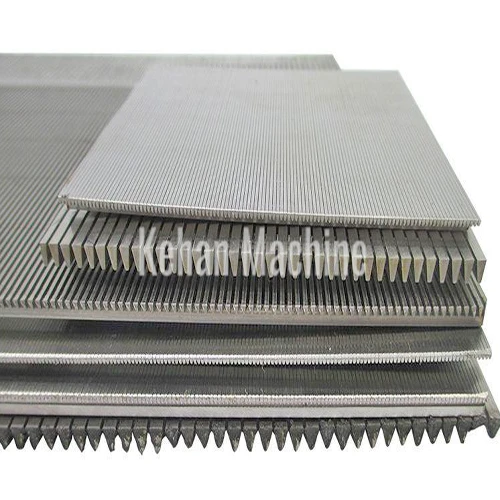

Mining screen, also termed wedge wire wound screen plate, has high tensile strength, firmness and load-bearing ability, and can be made into rigid screening and filtering mechanisms of various shapes. Prone to leakage, abrasion-resistant and corrosion-resistant. The cross-section of the wire is trapezoidal, with narrow apertures at the top and wide at the bottom. Wedge wire wound screen is widely utilized in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other fields.

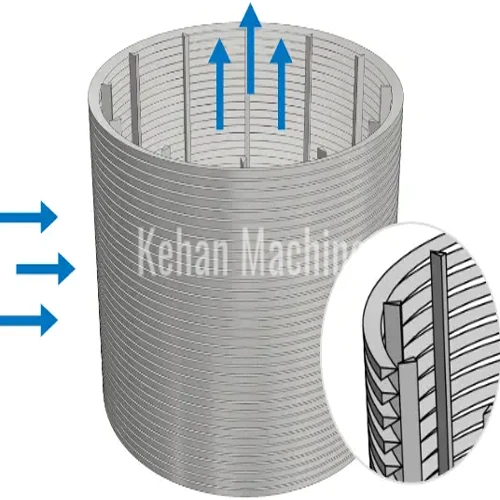

Johnson tube, also known as wedge wire filter tube, water well tubing, wedge wire wound screen tubing, is widely used in oil, gas, water well sand control and industrial filtration in chemical, environmental protection and other fields. It is the most commonly used filter screen tube used in various oil and water resource retrieval and gathering of resin and other filter materials.
