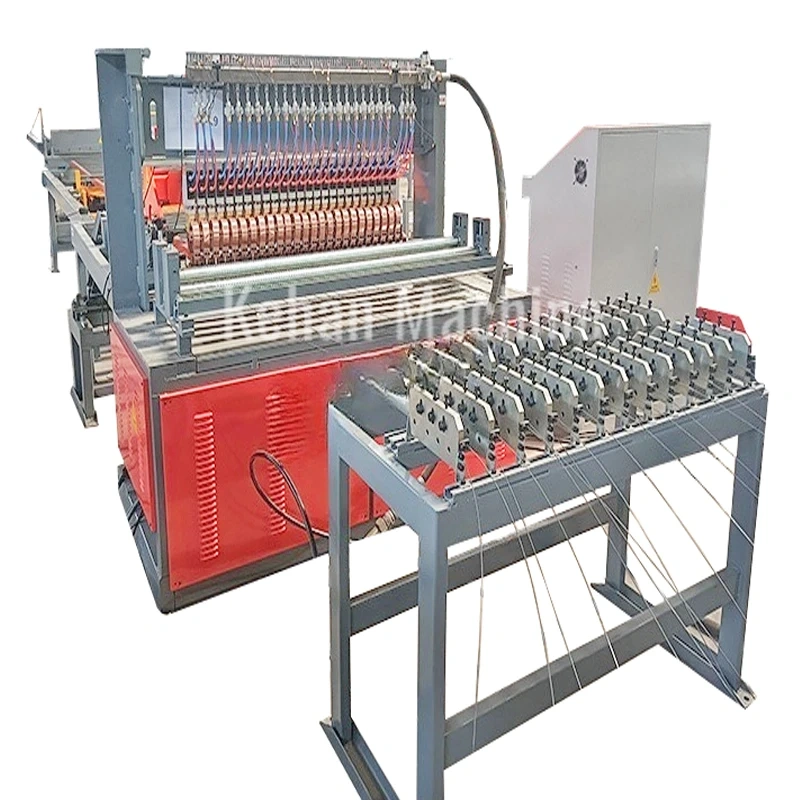

Steel Wire Mesh Welding Machine capably process wire mesh for animal cages, cable tray, kitchen basket, protection net, etc.
Wire Mesh Welding Machine is also called Chicken Cage Welding Machine, Cable Tray Wire Mesh Welding Machine. Automatic Wire Mesh Welding Machine adopts automatic production line and produces welded wire mesh for husbandry, farming, building, industrial, Commercial uses.
Technical Parameter:
|
Model |
JL-1200 |
JL-1600 |
|
Mesh width |
1200 mm |
1600 mm |
|
Wire diameter |
2-4mm |
2-4mm |
|
Line wire aperture |
50-250mm |
50-250 mm |
|
Cross wire aperture |
25-250mm |
25-250mm |
|
Welding speed |
100-150 times/minute |
100-150 times/minute |
|
Transformer |
125KVA3 (water-cooling) |
125KVA4 (water-cooling) |
|
Dimensions |
4 X 2 X 1.8 m |
4 X 2.4 X 1.8 m |
|
Weight |
4500 KG |
5500KG |

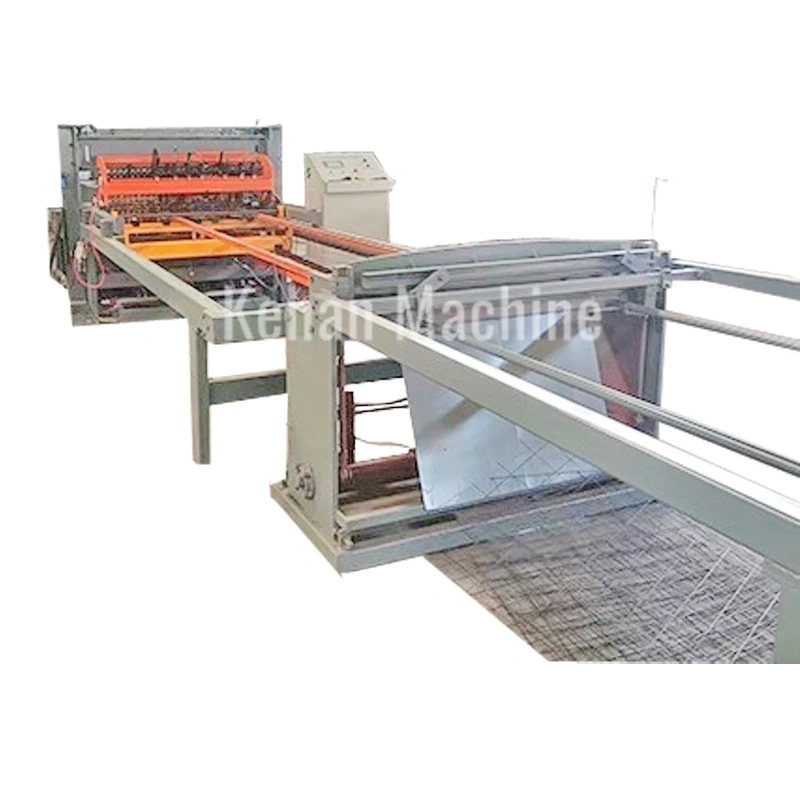

Wire Mesh Welding Machine Line includes units:
Wire pay-off, line wire straightening unit, welding machine, cutting machine, & mesh dropping system.
Wire Mesh Welding Machine Structures:

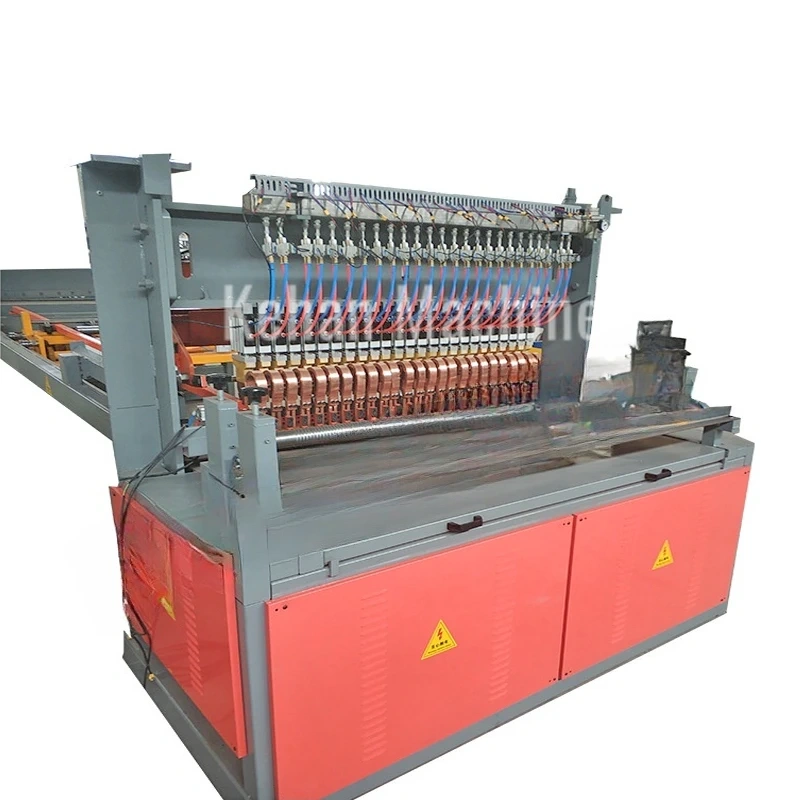

- Electro-Synchronized Control System.
The wire mesh welding equipment integrates electrical and electronic synchronization technology for phase-separated welding. Specifically, digital circuits and integrated modules govern welding timing, ensuring millimeter-level precision and stable operation. Consequently, welded joints exhibit exceptional durability.
- User-Friendly Interface.
Intuitively, the human-machine interface allows preset welding parameters via tactile controls. Remarkably, operators master the system within minutes, streamlining workflow efficiency.
- High-Speed Welding Capacity.
With a peak rate of 150 welds per minute, productivity surges dramatically. Simultaneously, advanced cooling mechanisms prevent overheating during continuous operation.

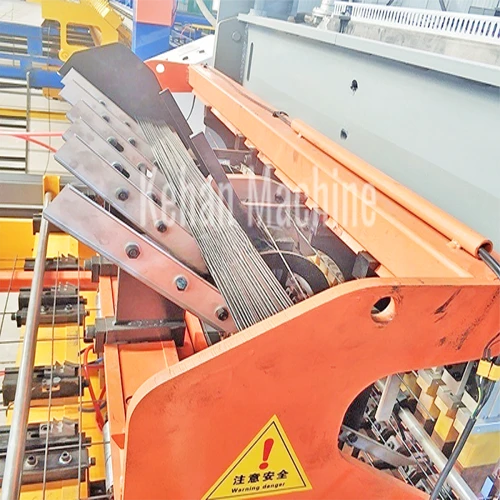

- Automated Wire Processing.

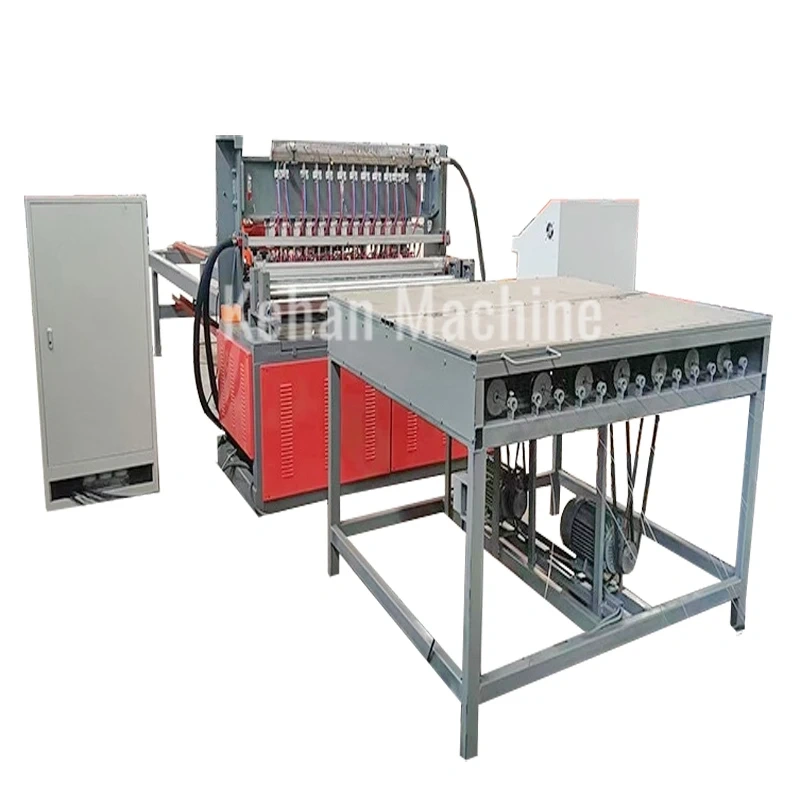

Horizontal wires undergo pre-straightening and precision cutting before entering a step-motor-driven hopper. Subsequently, the system feeds straightened wires automatically, eliminating manual intervention. Vertically, wires unspool directly from customized reels tailored to project load requirements.
Animal Poultry Cage Mesh Welding Machine Performance:
- Flawless Mesh Formation.

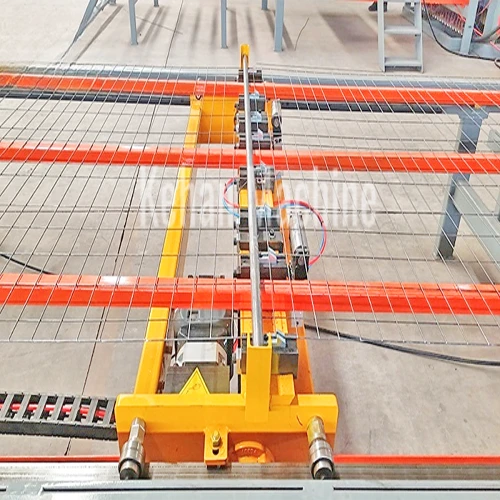

Weft wire alignment cylinders press strands seamlessly, eradicating burrs without secondary trimming. Furthermore, an elastic tension linkage in the grid traction system enables micron-level aperture adjustments. Operators effortlessly calibrate mesh dimensions within preset ranges.
- Flexible Output Formats.

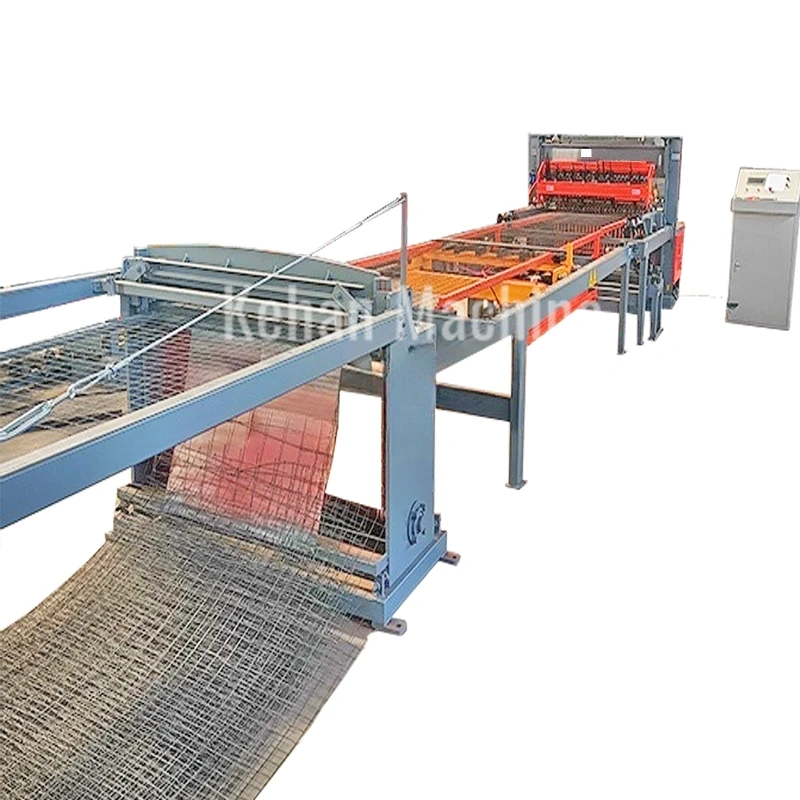

Finished products exit as rolls or sheets, adapting to diverse industrial needs.
- Reinforced Material Handling.
A multi-directional wire straightening unit guarantees flat welding surfaces by eliminating torsional stress. Meanwhile, CNC-driven welding heads regulate speed and energy input, optimizing bond integrity.

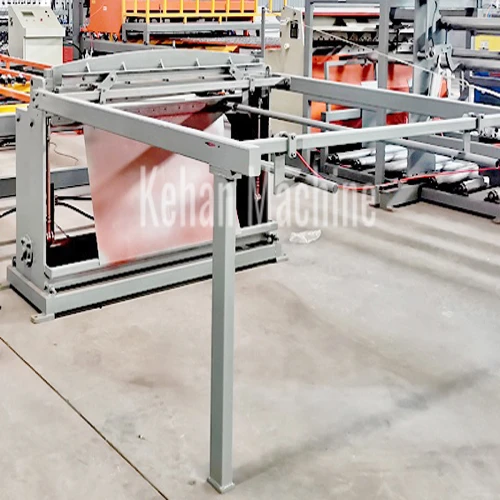

- Smart Cutting & Stacking.
Synchronized shearing machine slices mesh panels to programmed lengths with sensor-guided accuracy. Optionally, automated stacking modules organize outputs into bundled batches, while basic configurations allow manual collection.

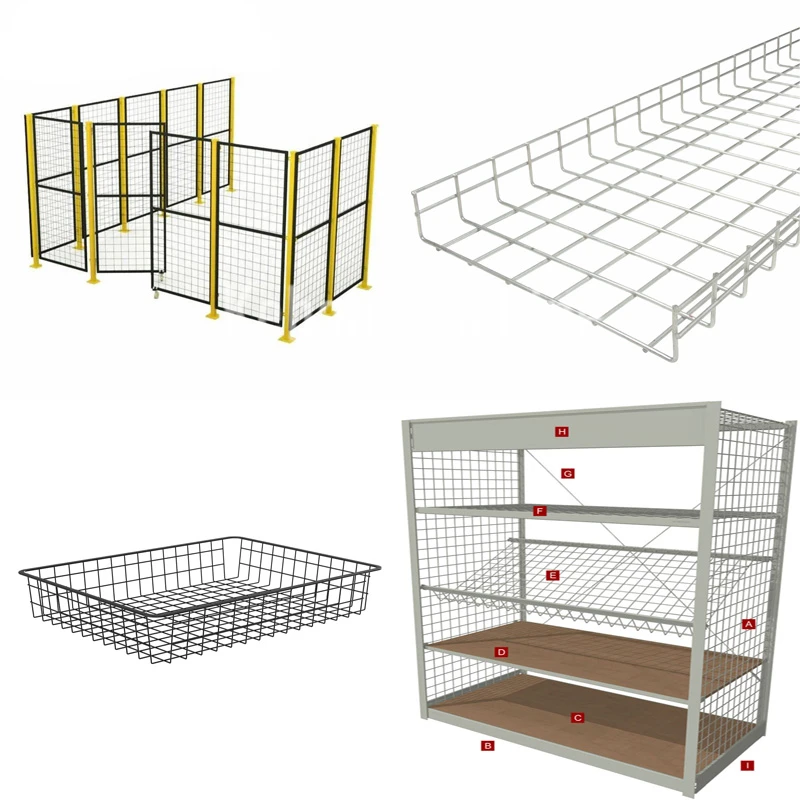

Welded Wire Mesh Machine and Product Applications:
Welded wire mesh notably features robust weld joints, uniform apertures, and a polished finish. Additionally, it is available in diverse dimensions for versatile industrial use. Consequently, manufacturers widely deploy this material for animal enclosures, poultry netting, and plaster reinforcement grids. Similarly, construction teams integrate it into concrete stabilization frameworks and thermal insulation systems.
Practically, households utilize it for metalware items like window screens, storage racks, and decorative baskets. Remarkably, its durable construction ensures consistent performance in shelving units or document organizers.
